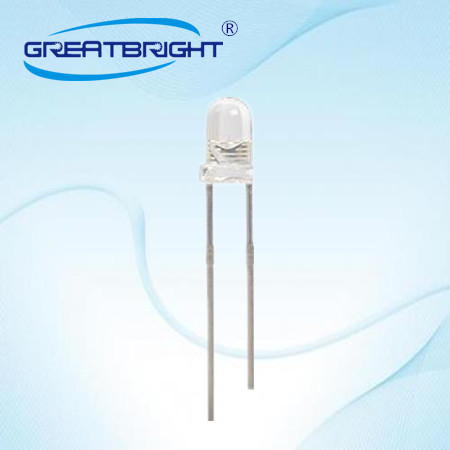

3MM圆头LED系列

3mm直插led红光,3mm直插led绿光

3mm直插led红光,3mm直插led绿光
台铭直插式LED,体积小,高亮度,能耗低,应用于照明,背光等领域。
台铭直插式LED,体积小,高亮度,能耗低,应用于照明,背光等领域。
联系我们
3mm直插led红光,3mm直插led绿光 立即咨询
首页/产品/直插LED系列/3MM圆头LED系列

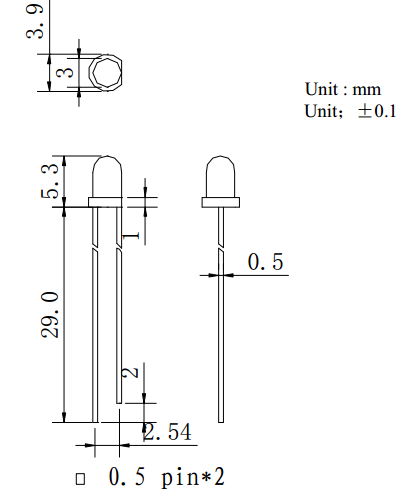

技术规格

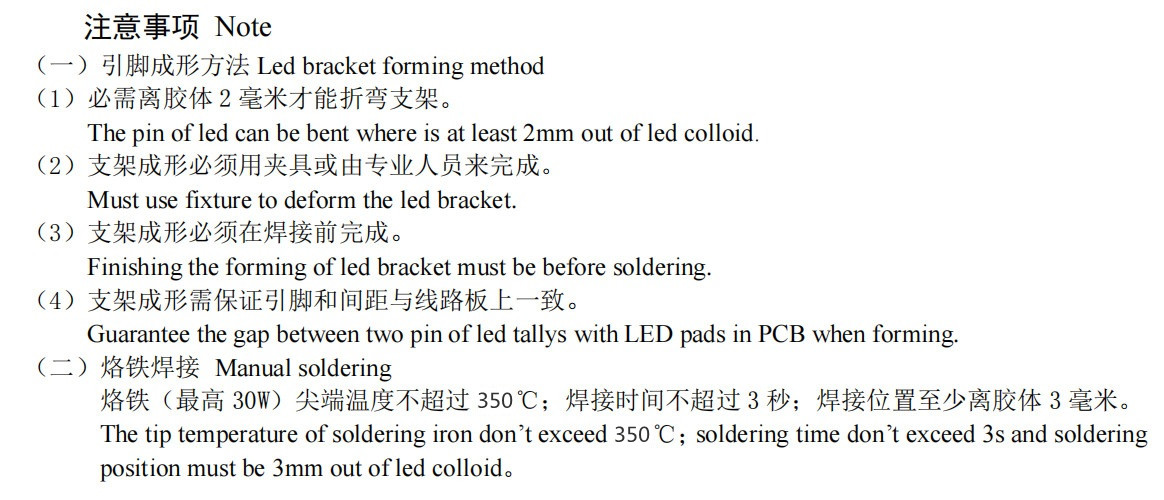

Supporter shaping:

Shaping of the supporter must be conducted before welding. While shaping, the

bending position of the supporter must at least be located at 3mm from the bottom

of the encapsulating resin. Also, avoid multiple bending on the same position。 Please

choose the

appropriate apparatus to fixate the supporter in order to avoid exerting extra pressure

on resin. Using the jointing section of the pin and resin as fulcrum is strictly

prohibited since the pressure mounted would directly damage the internal 。

illuminating structure and thus cause irreversible defection of the product..Due to the

same reason, the interval between the welding hole on the PCB board should be

strictly matched with the pin interval of the product when assembling the product.
